Description

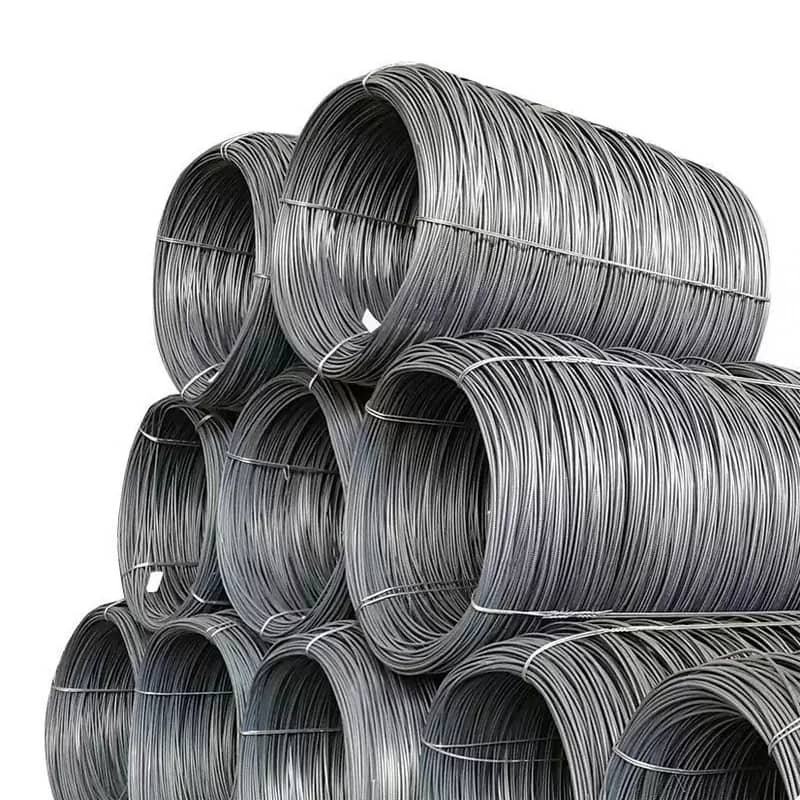

Wire is available in both low carbon and high carbon quality steel. Low carbon wire is available as galvanized, bright, and annealed with wire processing options that include cold heading and straighten and cut. Used primarily for components in applications such as the construction, automotive and military. Carbon steel wire comes in diameters that range from 0.008” to 1.25” depending on the type. This type of carbon wire forms easily and can handle moderate flattening and bending.
High carbon wire is used in diverse applications across various industries. We offer bright wire, galvanized wire, and PC wire in diameters ranging from 0.011” to 0.312” and strand and rope with diameters from 1/8” to ½”. Our exceptional high carbon wire is found in quality musical instruments and fine furniture as well as in construction and industrial applications. This type of carbon steel wire is stronger due to the higher carbon content and less ductile than low carbon wire.
| carbon steel wire | |
| SAE1006 SAE1008 low carbon steel wire | |
| Product name: | SAE1006 SAE1008 low carbon steel wire |
| Place of Origin: | Shandong , China |
| Application: | Building Construction |
| Standard: | AiSi |
| Length： | 6m 12m |
| Grade: | HRB400/HRB500/ASTM/GR |
| Tolerance: | ±5% |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching |
| Invoicing: | by actual weight |
| Delivery Time: | 8-14 days |
| Diameter: | 6mm-32mm |
| Technique: | Hot Rolled/Cold RolledSteel Rebar |
| Port: | Tianjin |
| Packaging Details | in bundles, in bulk, customized packing. |
Product Specification and Size :
Carbon Steel Wire Rod
Low and Middle Carbon Steel Wire Rod
High Carbon Steel Wire Rod
Cold Heading Carbon Steel Wire Rod
Free Cutting Steel Wire Rod
Alloy Steel Wire Rod
Approximate Comparative Table
| Product Name | UNS | AISI | JIS | DIN | AWS |
| Carbon Steel | G10060 / G10750 | 1006 / 1075 | SWRM6~SWRM22 | Ck10 / Ck60 | |
| SWRCH6A~ASRCH22A | |||||
| SWRH62A~SWRH72B | |||||
| Free Cutting Steel | G12144 | 12 L14 | SUM 24L | 9 S MnPb36 | |
| Welding Steel | SWRY 11 | ||||
| YGW 11 | |||||
| ER 70S-6 | |||||
| EM 12K | |||||
| Low Alloy Steel | CSC, C-CH 35ACR, C-CH 40ACR, 10B21, 10B33, 50BV30 | ||||
1. Hot rolled wire rod of ball bearing steel:
Ball BEARING steel, referred to as bearing steel, is used to manufacture all kinds of rolling bearing ring (bushing) and rolling body (ball) steel. Due to the particularity of its use, bearing steel is required to have high and uniform hardness and wear resistance, high elasticity and fatigue strength. Sufficient toughness and hardenability, at the same time in the atmospheric environment or lubricant has a certain corrosion resistance. Some special purpose rolling bearings also require high temperature resistance, corrosion resistance, non-magnetic, ultra-low temperature, high precision, long life and other properties. Therefore, the selection of bearing steel and steel quality requirements are stricter than the general steel. Bearing steel usually refers to high carbon chromium steel, in addition to carburizing bearing steel, high carbon chromium stainless bearing steel. Generally used for rolling ball bearing steel hot rolled wire rod has 5 steel.
Main APPLICATIONS: Hot rolled wire rod of ball bearing steel is mainly used to manufacture steel balls (steel balls) of bearings.
2 . stainless steel rod:
Stainless steel rod is hot rolled by a variety of stainless steel materials of different types of organization.
Main uses: Stainless steel rod is mainly used in the manufacture of stainless steel wire, stainless spring steel wire, stainless top forged steel wire and stainless steel wire for steel wire rope. According to the main industrial use to distinguish, stainless steel rod also has stainless steel and stainless acid-resistant steel rod.
3. Stainless steel wire rod for welding:
Welding stainless steel rod and general stainless steel rod in the chemical composition is different. In order to ensure its excellent welding performance, improve the weld quality, welding stainless steel wire rod in the composition of the significant characteristics are low carbon content, phosphorus, sulfur and other toxic impurities, nickel, chromium content is high.
Main Applications: Mainly used in the manufacture of electrode core and wire.
| Low Carbon Wire | High Carbon Wire |
| Galvanized WireFrom 0.008″ to 0.437″Commercial coatingClass I, III, and IVPVC coating | Bright WireFrom 0.011″ to 0.312″Upholstery spring wireBorder and Brace wireLacing wireZig Zag wireLead patented for garage door springHard drawn class I and IIFlat wireFrom 0.011″ to 0.312″Music spring wire |
| Bright WireFrom 0.008″ to 1.125″Bright BasicPlating qualityIndented wireFlat wire | Galvanized WireFrom 0.066″ to 0.187″ACSR Core wire, class A and BFrom 0.018″ to 0.065″Hard drawn Class I and IIFrom 0.018″ to 0.065″Music spring wire |
| Annealed WireFrom 0.008″ to 1.125″Bright annealedBlack annealedSphereroidize annealed | PC wireFrom 0.0120″ to 0.237″Smooth and Indented |
| Cold Heading QualityFrom 0.060″ to 1.125″DFAR )drawn from annealed rod)SAFS (Spheroidize Annealed at Final Size)SAIP (Sphereoidize Annealed In-Process)Hard Drawn Zinc Phosphate Coating | Strand and RopesFrom 1/8″ to 1/2″ACSR StrangeGuy WireOverhead ground wireMessenger wireSpecialty small diameter ropes |
| Straight and Cut WireFrom 0.080″ to 0.562″ From 0.095″ to 40GalvanizedPlating qualityIndustrial quality |
Application
Carbon steel wire rod is extensively used to manufacture many wire products, such as:
– Agricultural and commercial uses
– Bright wire for electrolytic zinc coating
– Normal for automatic nailing
– Barbed wire
– Chains
– Screws, nuts and bolts
