Description
What is marine grade steel plate?
Marine Grade Steel is a type of structural alloy steel which is standardized by the American Bureau of Shipping (ABS) for specific use in the ship building industry. This group of alloy steel is engineered to be stronger and able to withstand harsh marine conditions.
What are marine grade carbon steels?
There are various Carbon steel grades available such as AH36, DH36, and EH36, that are commonly used in marine environments. These grades have more alloying elements like chromium and manganese that offer more strength and corrosion resistance. These grades are approved by the American Bureau of Shipping.
Product Specification and Steel Grade (For Reference)
| Quality | Testing direction | Material-No. | Yield point Rp0,2 (MPa) | Tensile strength Rm (MPA) | Elongation A80 (in %) min. | r-Value 90° min. | n-Value 90° min. | Old Description |
|---|---|---|---|---|---|---|---|---|
| DC01 | Q | 1.0330 | ≤280 | 270 – 410 | 28 | St 12-03 | ||
| DC03 | Q | 1.0347 | ≤240 | 270 – 370 | 34 | 1,30 | St 13-03 | |
| DC04 | Q | 1.0338 | ≤210 | 270 – 350 | 38 | 1,60 | 0,18 | St 14-03 |
| DC05 | Q | 1.0312 | ≤180 | 270 – 330 | 40 | 1,90 | 0,20 | St 15-03 |
| DC06 | Q | 1.0873 | ≤170 | 270 – 330 | 41 | 2,10 | 0,22 | |
| DC07 | Q | 1.0898 | ≤150 | 250 – 310 | 44 | 2,50 | 0,23 |
| Application | JIS | ASTM | SAE |
| Commercial Quality | G3131 SPHC | A569 A635 A659 A1011 CS Type A, B, C |
1006~1025 |
| Drawing Quality | G3131 SPHD | – | 1006-1010 |
| Deep Drawing Quality | G3131 SPHE | A622 A1011 DS Type A, B |
1006~1010 |
| General Structure (T.S. < 490 N/mm2) |
G3101 SS330 SS400 G3106 SM400A G3132 SPHT1 SPHT2 SPHT3 |
A36 A283 GR.C A570 GR.30~40 A1001 SS GR.30~40 |
1010~1025 |
| General Structure (T.S. ≧ 490 N/mm2) |
G3101 SS490 G3106 SM490A SM490A SM490YA G3132 SPH4 |
A570 GR.45~50 A607 GR.45~70 A1011 SS GR.45, 50 A1011 HSLAS GR.45~70 |
J1392 050X |
Available Size
| Thickness (mm) | Mill Edge Width (mm) |
Cut Edge Width (mm) |
Coil Inside Diameter (mm) |
|
| Coil | 1.50~6.50 | 720~1860 | 762 | |
| Coil | 6.51~10.00 | 850~1500 | 762 | |
| Strip | 1.50~6.50 | 30~720 | 762 |
| Thickness (mm) | Mill Edge Width (mm) |
Coil Inside Diameter (mm) |
|
| Plate | 6.00~150 | 500~4000 | 1200~18000 |
| Sheet | 1.50~5.99 | 50~1845 | 760~6100 |
Application
Carbon hot rolled steel sheets and plates are used in the welding and construction sectors such as railroad tracks, construction equipment, boom cranes, agriculture equipment and heavy vehicle frames. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities. In general, higher carbon content in steel makes steel harder, brittler and less ductile.
Carbon cold rolled steel coils and strips are produced with a highly adaptable manufacturing process, which are extensively used in automobile, washing machines, refrigerators, electrical appliances and steel office equipment. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities. In general, higher carbon content in steel makes steel harder, brittler and less ductile.
Parameter

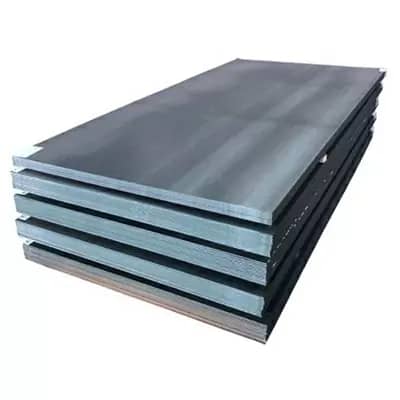

| Product | Hot rolled DH36 ABS marine carbon steel plate sheet | Cold rolled AH36 Marine carbon steel plate sheet |
| Thickness | 3.0mm-200mm | 0.3mm-6.0mm |
| Standard Width | 1240mm/1500mm/1800mm/2000mm/2200mm | 1000mm/1219mm/1500mm |
| Standard Length | 2438mm/6000mm or as client’s requirement | 2000mm/2439mm/3000mm or as per client’s requirement |
| Standard | ABS ASTM,JIS,SUS,GB,DIN | ASTM,JIS,SUS,GB,DIN |
| Packing | Standard export packing for marine Carbon steel sheet:
1.surface , 2: bundle package, 3:wooden case,wooden pallet package, 4:container or bulk, 5:special according to customer’s request |
|
| Application | ABS Marin carbon Steel Sheet are widely used in below fields:
AH36, DH36, and EH36, that are commonly used in marine environments. These grades have more alloying elements like chromium and manganese that offer more strength and corrosion resistance. These grades are approved by the American Bureau of Shipping . ABS grades are used in the Ship Building(Marine) and mobile offshore drilling units and structures. |
|
